How to set use guide and set TM100 key programmer ?

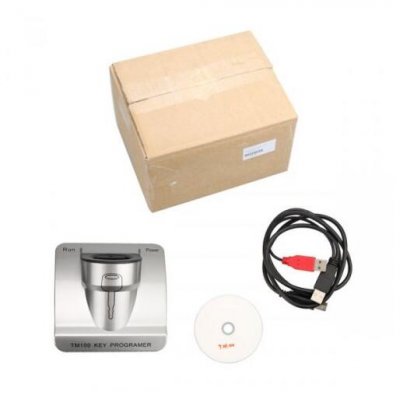

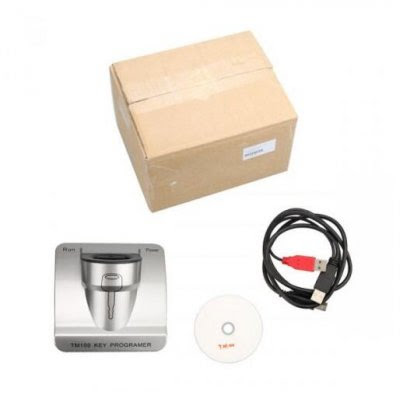

TM100 is a Transponder Key Programmer for All Key Lost cars. TM100 Transponder Support Total 62 Modules . TM100 Transponder Key Programmer New functions for reading the Kilometers, VIN and transponder type for all BMW keys was added to the BMW software module! Immo pin code is also displayed for some car models.
TM100 key programmer is a strong competitor of  Tango and even better.

Such a powerful  Transponder Key Programmer, Do you know how to set it up? now obd2cartool.com will detail to you!

Howto guideTM100 transponder programmer as below:

How to guide TM100 Key Programmer / TM100 transponder programmer  Function List

How to edit odometer for BMW CAS4, CAS4+?

First, select Tools→ Dump Editor→ BMW→CAS4 odometer setting.
Open dump file, current odometer value is displayed, input new odometer value, and set new value.
Save new generated file and write it back to CAS4.

How to save ISN for BMW?

Select key maker for BMW CAS3+ adding key.
After original key decoded, TM100 will save 16-byte ISN for you.
If the same car lost all keys, you can use the saved ISN to do all key lost without reading ISN from DME.

How to save ISK for BMW?

Select key maker for BMW CAS4+ adding key.
After original key decoded, TM100 will save 16-byte ISK for you.
If the same car lost all keys, you can use the saved ISK to do all key lost without reading ISK from DME.

How to clone TIRIS 4D?

Select Tools→ Clone→ Tiris 4D.
Connect TM100 key cloner to PC.
Put original key into coil of TM100 key programmer to decode.
If decode success, put YS01/TPX2/EH2 transponder into coil of TM100 key programmer.

How to clone HITAG2?

Select Tools→Clone→PCF7936.
Collect signature data: put sniffer antenna of TM100 key cloner near ignition, turn ignition on by original key. If collect success, red LED will blink once. If not, collect data again.
Connect TM100 key cloner to PC.
Put original key into coil of TM100 key programmer to decode.
If decode success, put YS21/GMT46 transponder into coil of TM100 key programmer.

How to copy MEGAMOS ID13?

Select TP Reader, click “MEGAMOS 13”.
Put original ID13 chip into coil, click Read.
Put T5 into coil, click Write.

How to copy TEMIC 8C?

Select TP Reader, click TEMIC 8C.
Put original 8C chip into coil, click Read.
Put TK5561 into coil, click Write.

How to make VAG dealer key by 7-byte CS?

Select TP Reader, click “MEGAMOS 48”, click button “Dealer key by 7-byte CS”.
Input 7-byte component security, select brand, put new key into TM100 coil.
Click button “Make dealer key”.

How to search the 7th byte for VAG?

Select TP Reader next click “MEGAMOS 48” then click button “Search 7th CS”.
Input 6-byte component security, select brand and put the working key into coil.
Click button “Search”.

How to edit ID46 transponder IDE?

Select TP Reader, click “PCF7936”.
Input 4-byte IDE at P0, click button “Write”.

How to unlock key for BMW?

Select Tools→ Unlocker→ BMW→ Unlock HITAG by CAS dump.
Open CAS dump file, put key to be unlocked into coil and click button “Unlocker”.

How to unlock key for VW, Passat B6?

Select Tools→ Unlocker→ VW→ Passat B6→ Comfort Module, Unlock HITAG by 95320.
Open 95320 dump file, put key to be unlocked into coil and click button “Unlocker”.

How to synchronize CEM and ECU of Volvo?

Open TM100 software, select “Tools”, select “Dump Editor”, select Volvo, CEM+ECU.
Open dialog, open CEM and ECU dump file, check and make synchronization.

How to calculate Nissan 20 digit Pin Code?

Open TM100 software, select “Tools” then select “Calculator”.
Open dialog, input 20-digit Pre-PIN, click “Calculate”.

How to use Digiprog 3 V4.94 do program EEPROM?

Digiprog 3 is the most popular Odometer correction tool, Latest V4.94 Digiprog 3 Mileage programmer add more car models on the basic of Digiprog III odometer.

But do you know how to program EEPROM with digiprog 3 odometer correction tool through “EEPROM”menu. there obd2cartool.com will help you to know:


EEPROM programming with Digiprog 3 is done through some adapters, for example, 01/04 Adapter, Digiprog 3 ST02 cable or others. These adapters can be purchased at local aftermarket shops or from online stores.


EEPROM chip 01/04 Adapter picture :

Notes before you start:
1. De-solder eeprom
2. Make sure the contact points or legs with glass fiber pin thoroughly.
3. Clean clearly with sandpaper, etc
4. Insert eeprom correctly into Digiprog3 ST01/ST04 adapter, and make sure they are contacting.

How to programming EEPROM via digiprog 3 mileage correction tool?
1. Connect DP3 device to your car via OBD connector
2. Enter “EEPROM” menu

3. Read data from EEPROM and store them in digiprog3 Follow this way:
Select the “SET TYPE” and choose “93C46″, then your digiprog has been set up to read a 93C46 chip. Press “EEPROM” again and then “READ”. There will show you the information on the digiprog III screen when the reading is complete. Now press “VERIFY” so the information on your screen can agree with the Eeprom.
Next click the “FILE” and there will show you another submenu, you can click “SAVE” and enter a file name for the information you are saving. Once you entered the file name, your data is safe and the vehicle is now ready to be reprogrammed.
4. Get EEPROM from ST01/ST04 adapter and reload it;
5. Select the function EEPROM COMPARE;
6. Then it is the previous read data on digiprog 3 but not the internal memory, comparing it with the now re-inserted EEPROM;

NOTE:
Error message may appear during the process, restore or reprogram, restore the original data status and it will be
fixed.
External eeprom programmer Read and store data status Take EEPROM from the adapter and insert it again
Re-read data level and save it
Comparison on data sets in the editor (windows—total commander)
If the comparison is identical, it is correct.
If the data is restored already, the reprogramming error shows the original data
Data state produced!

Nice Wifi Samtec Piwis Tester 2 with CF30 plus V18.10 Full set Ready to Use

Piwis Tester II is the latest professional tester for Porsche,with samtec piwis tester 2 hardware,powerful functions,full access.  Wifi piwis tester ii work with the full system porsche car ,Piwis II Wireless tester comes with best piwis ii VCI , support online function,  samtec piwis tester 2 with the panasonic CF30 laptop and V18.100 software for the test.

PIWIS II the wifi solution is 100% OEM as dealership ones, you can choose both USB (LAN) connection and Wireless (WLAN) function, also the wifi singal is really strong, which over 30 meters. what more, we also will add free one Wireless Router to stronger your singal with wifi Piwis tester 2.Please NOTICE, the PCB we use Samtec PAN scheme not J2534 one!

A prerequisite for using wLAN is the availability of a suitable infrastructure. The workshop safety
guidelines must also permit the use of radio networks.
Connect the VCI to the PC using the supplied USB cable and start the VCI configuration software.
This can be accessed via the relevant link in the basic software.
The necessary setup steps are described separately in the section entitled wLAN configuration.
In order to establish a wLAN connection, the USB connection must be removed once configuration has been completed successfully.
This is because once established, the USB connection is always active.


Only use IP addresses approved for local operation (e.g. 192.168.x.x) in the local wLAN/LAN
Example:
Network: 192.168.1.0, subnet mask 255.255.255.0
• Addresses that can be used: 192.168.1.1 up to 192.168.1.254
• Router address (gateway): 192.168.1.254
• Client addresses (e.g. VCI, laptop): 192.168.1.1 up to 192.168.1.100 (max. 100 participants)
